Solving Overdetermined Linear Systems

01 Mar 2025

An overdetermined linear system is a linear system of $n$ equations in $m$ unknowns, where $n > m$.

\[\begin{align*} a_{11}x_{1} + a_{12}x_{2} + \cdots + a_{1m}x_{m} &= y_1 \\ a_{21}x_{2} + a_{22}x_{2} + \cdots + a_{2m}x_{m} &= y_2 \\ \vdots \hspace{2.5cm} &= \vdots \\ a_{n1}x_{2} + a_{n2}x_{2} + \cdots + a_{nm}x_{m} &= y_n \\ \end{align*}\]

The unknowns are $x_{i} \in X$ and the range / observation values are $y_{j} \in Y$. The system can be represented compactly in matrix form as $ A \vec{x} = \vec{y} $. Where $A: X \to Y$ is a linear map defined as $A = [a_{ij}]$.

No Solution but We Still Want a Solution

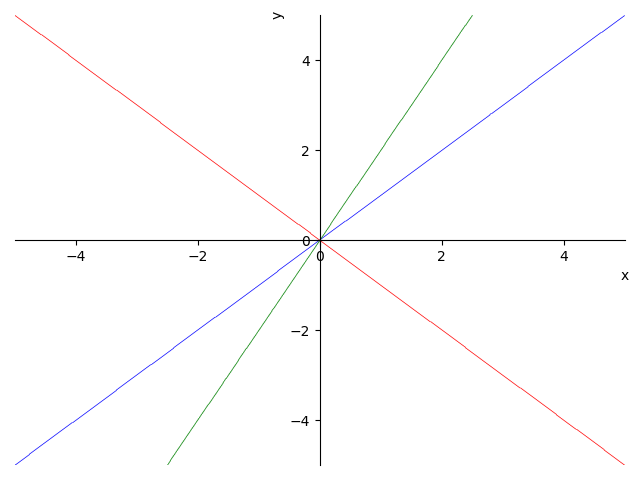

Overdetermined linear systems are usually not solvable, because among the $n$ equations (NOT the rows of $A$) it is most likely that there is no subset of $m$ independent equations which spans/explains all the remaining $n-m$ equations. Only in the rare circumstance where there is a set of $m$ independent equations spanning the remaining $n-m$ equations can the system be solved. An example of such a system would be

\[\begin{align*} x - y &= 0 \\ x + y &= 0 \\ 2x - y &= 0. \\ \end{align*}\]

This system is pictured above in Figure #1. Any two equations of the system explain the other. For example the third equation can be eliminated because $\rho_3 = \frac{1}{2}(3\rho_1 + \rho_2)$. Leaving a system of two independent equations in two unknowns, which is solvable.

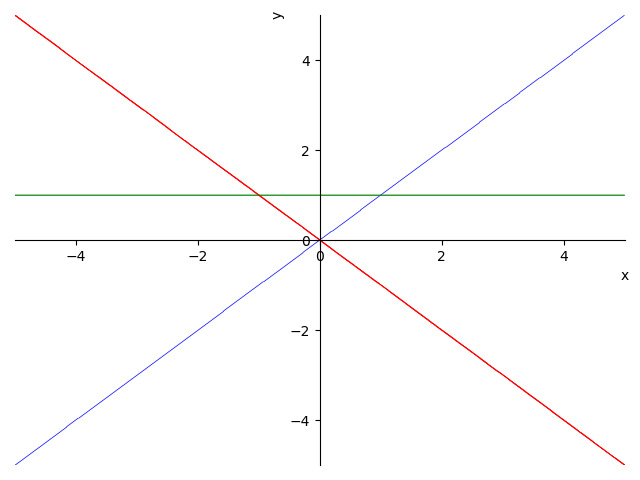

More common are systems like the one listed and pictured below.

\[\begin{align*} x - y &= 0 \\ x + y &= 0 \\ y &= 1. \\ \end{align*}\]

See gist for code to generate the figures.

Unlike the solvable system all the three equations (NOT the rows of the matrix representing the LHS) are independent. No two equations spans the other.

Expecting a solution or what I will call a strict solution is too much to hope for. However, for many applications a solution is wanted and needed. So what to do? Well, the definition of equality can be weaken to minimizing the distance the between $y \in Y$ and $Ax$,

\[\min_{x \in X}{\left\lVert A x - y \right\rVert}.\]

The singular value decomposition (SVD) of $A$ will allow us to express the minimizer in closed form.

SVD

Decomposing $A$ using SVD we get

\[A = U\Sigma V^{*}.\]

Where both $U$ and $V$ are unitary matrices and $dim(U) = n \times n$, $dim(\Sigma) = n \times m$, and $dim(V) = m \times m$. Because $rank(a) = \rho \leq m$, $\Sigma$ has the general form

\[\left[ \begin{array}{cccc|c} \sigma_1 & & & & \\ & \sigma_2 & & \huge0 & \\ & & \ddots & & \huge0 \\ & \huge0 & & \sigma_{\rho} & \\ & & & & \\ \hline & & \huge0 & & \huge0 \\ \end{array} \right]\]

The solution $\vec{x} \in X$ is where $\min_{\vec{x} \in X} \left\lVert A \vec{x} - \vec{y} \right\rVert$. Substituting $A = U\Sigma V^{*}$ into the minimization we get a new minimization in terms of $\Sigma$.

\[\begin{align*} \left\lVert A \vec{x} - \vec{y} \right\rVert &= \left\lVert U\Sigma V^{*} \vec{x} - \vec{y} \right\rVert \\ &= \left\lVert U(\Sigma V^{*} \vec{x} - U^{*}\vec{y}) \right\rVert \\ &= \cancelto{1}{\left\lVert U \right\rVert} \left\lVert \Sigma V^{*} \vec{x} - U^{*}\vec{y} \right\rVert .\\ \end{align*}\]

Now, the original minimization problem is equivalent to

\[\min_{\tilde{x} \in X}{\left\lVert \Sigma \tilde{x} - \tilde{y} \right\rVert}\]

where \(\tilde{x} = V^{*} \vec{x}\) and \(\tilde{y} = U^{*} \vec{y}\). As a system of linear equations $\Sigma \tilde{x} = \tilde{y}$ is

\[\begin{align*} \sigma_{1}\tilde{x}_{1} &= \tilde{y}_1 \\ \sigma_{2}\tilde{x}_{2} &= \tilde{y}_2 \\ \vdots &= \vdots \\ \sigma_{\rho}\tilde{x}_{\rho} &= \tilde{y}_{\rho} \\ 0 &= \tilde{y}_{\rho + 1} \\ \vdots &= \vdots \\ 0 &= \tilde{y}_{n} .\\ \end{align*}\]

Clearly the system is inconsistent, but solving for $\tilde{x}_{i}$ up to $\rho$ and setting the remaining coordinates to zero gives a potential minimum/solution.

\[\tilde{x}_{i} = \begin{cases} \frac{1}{\sigma_{i}} \tilde{y}_i & i \leq \rho \\ 0 & \rho < i \leq m \\ \end{cases}\]

In matrix form the solution is $\Sigma^{+}\tilde{y}$, where

\[\Sigma^{+} = \left[ \begin{array}{cccc|c} \frac{1}{\sigma_{1}}& & & & \\ & \frac{1}{\sigma_{2}} & & \huge0 & \\ & & \ddots & & \huge0 \\ & \huge0 & & \frac{1}{\sigma_{\rho}} & \\ & & & & \\ \hline & & \huge0 & & \huge0 \\ \end{array} \right]\]

The norm to be minimized has a lower bound purely in last $n - \rho$ coordinates of $\tilde{y}$.

\[\begin{equation*} \left\lVert \Sigma \tilde{x} - \tilde{y} \right\rVert^2 = \sum^{\rho}_{i=1} \Big(\sigma_{i}\tilde{x}_{i} - \tilde{y}_i\Big)^2 + \sum^{n}_{i=\rho + 1} \Big(0 - \tilde{y}_i\Big)^2 \geq \left\lVert (\tilde{y}_{\rho + 1}, \tilde{y}_{\rho + 2}, \cdots, \tilde{y}_n)\right\rVert^2 \\ \end{equation*}\]

Substituting in the proposed solution makes the first summand zero and the norm difference reaches the lower bound.

\[\begin{gather*} \left\lVert \Sigma \tilde{x} - \tilde{y} \right\rVert^2 = \cancelto{0}{\sum^{\rho}_{i=1} \Big(\sigma_{i} (\frac{1}{\sigma_{i}} \tilde{y}_i) - \tilde{y}_i\Big)^2} + \sum^{n}_{i=\rho + 1} \Big(0 - \tilde{y}_i\Big)^2 \ \Longrightarrow \\ \left\lVert \Sigma \tilde{x} - \tilde{y} \right\rVert^2 = \left\lVert (\tilde{y}_{\rho + 1}, \tilde{y}_{\rho + 2}, \cdots, \tilde{y}_n)\right\rVert^2 \\ \end{gather*}\]

Therefore the mimimum is achieved at the proposed solution

\[\tilde{x}_{i} = \begin{cases} \frac{1}{\sigma_{i}} \tilde{y}_i & i \leq \rho \\ 0 & \rho < i \leq m \\ \end{cases}\]

Summary

The solution of a general overdetermined system $Ax = y$ is $x = V\Sigma^{+} U^{*}y$.
